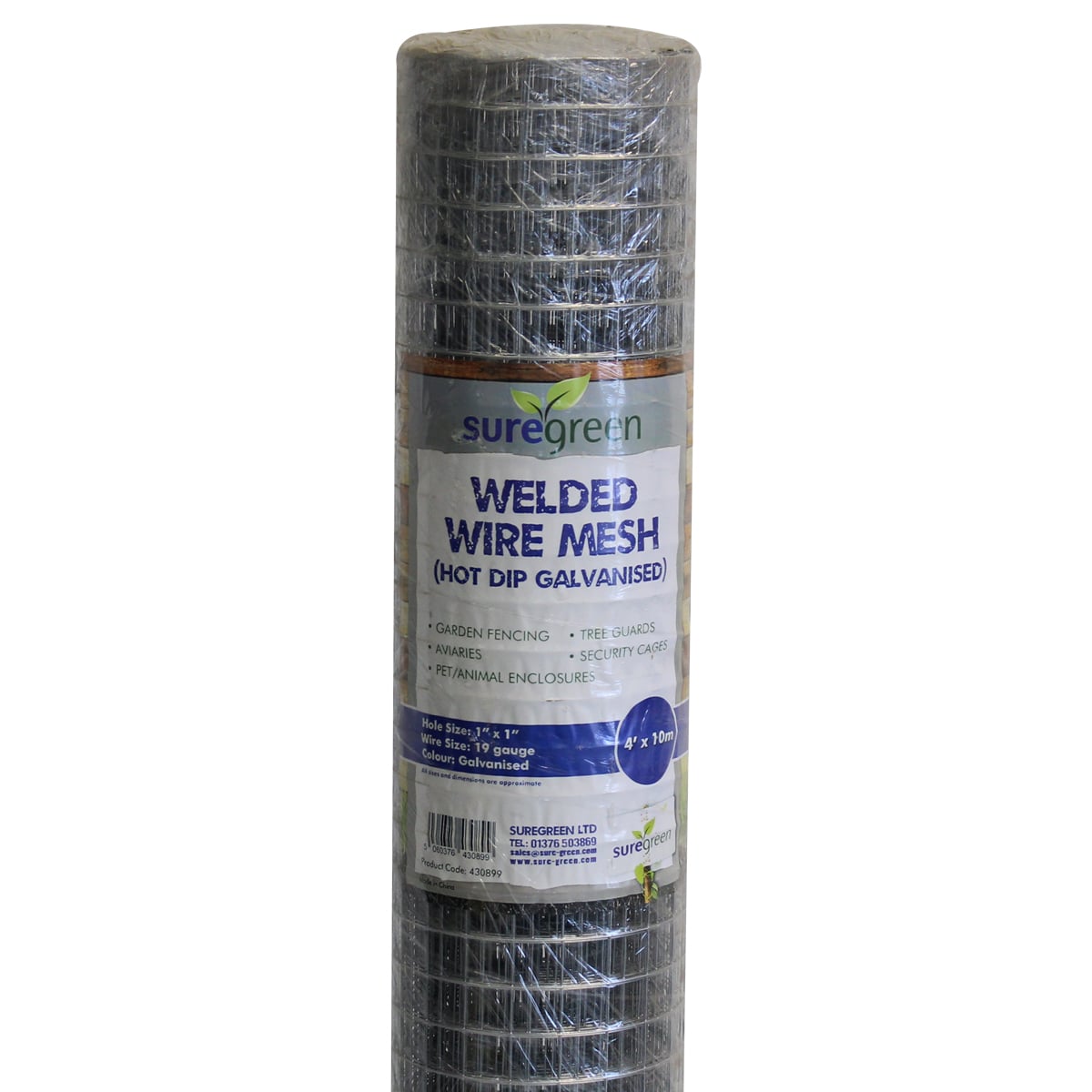

Intro to Welded Wire Rolls

Brief Introduction - Suregreen offer a range of welded wire mesh fencing, all are hot-dipped galvanised to protect the steel from the corrosion and the elements.  Typical uses for wire fencing include livestock fencing, agricultural and farm fencing, garden fencing, pet protection fencing.

Technical information -

Product Code: 430882Product: 1.2m x 10m with 25mm x 13mm holes – 19 gauge

  • Roll Height – 1.2m (4ft)
  • Roll Length – 10m (33ft)
  • Hole Size – 25mm x 13mm (1” x ½”)
  • Hole Type – Rectangle
  • Wire Thickness – 19 Gauge (1mm)
  • Finish – Galvanised after welding
  • Tensile strength for weld points –  >65N
  • Weight – 9 Kgs

Product Code: 430875Product: 90cm x 30m with 25mm holes – 19 gauge

  • Roll Height – 90cm (3ft)
  • Roll Length – 30m (98ft)
  • Hole Size – 25mm (1”)
  • Hole Type – Square
  • Wire Thickness – 19 Gauge (1mm)
  • Finish – Galvanised after welding
  • Tensile strength for weld points –  >65N
  • Weight – 13 Kgs

Product Code: 430899Product: 1.2m x 10m with 25mm holes – 19 gauge

  • Roll Height – 1.2m (4ft)
  • Roll Length – 10m (33ft)
  • Hole Size – 25mm (1”)
  • Hole Type – Square
  • Wire Thickness – 19 Gauge (1mm)
  • Finish – Galvanised after welding
  • Tensile strength for weld points –  >65N
  • Weight – 6 Kgs

Product Code: 430905Product: 1.2m x 30m with 25mm holes – 19 gaugeRoll Height – 1.2m (4ft)

  • Roll Length – 30m (98ft)
  • Hole Size – 25mm (1”)
  • Hole Type – Square
  • Wire Thickness – 19 Gauge (1mm)
  • Finish – Galvanised after welding
  • Tensile strength for weld points –  >65N
  • Weight – 17 Kgs

Product Code: 430912Product: 1.2m x 30m with 25mm holes – 18 gauge

  • Roll Height – 1.2m (4ft)
  • Roll Length – 30m (98ft)
  • Hole Size – 25mm (1”)
  • Hole Type – Square
  • Wire Thickness – 18 Gauge (1.2mm)
  • Finish – Galvanised after welding
  • Tensile strength for weld points –  >65N
  • Weight – 25 Kgs

Product Code: 430929Product: 1.6m x 30m with 25mm holes – 19 gauge

  • Roll Height – 1.6m (5.2ft)
  • Roll Length – 30m (98ft)
  • Hole Size – 25mm (1”)
  • Hole Type – Square
  • Wire Thickness – 19 Gauge (1mm)
  • Finish – Galvanised after welding
  • Tensile strength for weld points –  >65N
  • Weight – 24 Kgs

Product Code: 430936Product: 1.6m x 30m with 50mm holes – 15 gauge

  • Roll Height – 1.6m (5.2ft)
  • Roll Length – 30m (98ft)
  • Hole Size – 50mm (2”)
  • Hole Type – Square
  • Wire Thickness – 15 Gauge (1.8mm)
  • Finish – Galvanised after welding
  • Tensile strength for weld points –  >65N
  • Weight – 36 Kgs

Product Code: 430943Product: 1.2m x 30m with 50mm holes – 14 gauge

  • Roll Height – 1.2m (4ft)
  • Roll Length – 30m (98ft)
  • Hole Size – 50mm (2”)
  • Hole Type – Square
  • Wire Thickness – 14 Gauge (2mm)
  • Finish – Galvanised after welding
  • Tensile strength for weld points –  >65N
  • Weight – 36 Kgs

Product Code: 430967Product: 1m x 30m with 13mm holes – 19 gauge

  • Roll Height – 1m (3.2ft)
  • Roll Length – 30m (98ft)
  • Hole Size – 13mm (1/2”)
  • Hole Type – Square
  • Wire Thickness – 19 Gauge (1mm)
  • Finish – Galvanised after welding
  • Tensile strength for weld points –  >65N
  • Weight – 30 Kgs

Product Code: 434880Product: 1.8m x 10m with 50mm holes – 12 gauge

  • Roll Height – 1.8m (6ft)
  • Roll Length – 10m (33ft)
  • Hole Size – 50mm (2”)
  • Hole Type – Square
  • Wire Thickness – 12 Gauge (2.5mm)
  • Finish – Galvanised after welding
  • Tensile strength for weld points –  >65N
  • Weight – 28 Kgs

Product Code: 434897Product: 90cm x 15m with 25mm holes – 15 gauge

  • Roll Height – 90cm (3ft)
  • Roll Length – 15m (50ft)
  • Hole Size – 25mm (1”)
  • Hole Type – Square
  • Wire Thickness – 15 Gauge (1.8mm)
  • Finish – Galvanised after welding
  • Tensile strength for weld points –  >65N
  • Weight – 22 Kgs

Product Code: 433524Product: 90cm x 15m with 50mm holes – 12 gauge

  • Roll Height – 90cm (3ft)
  • Roll Length – 15m (50ft)
  • Hole Size – 50mm (2”)
  • Hole Type – Square
  • Wire Thickness – 12 Gauge (2.5mm)
  • Finish – Galvanised after welding
  • Tensile strength for weld points –  >65N
  • Weight – 16 Kgs
