Key Specification Sheet

Grass Reinforcement Mesh Specification Sheet

GR14 and GR11 Protection Mesh

Description

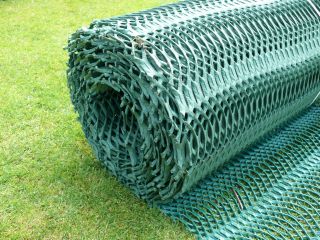

Thick plastic mesh for reinforcing grass surfaces. Fixed to the ground the grass growth will interlock with the mesh filaments creating a strong stable surface for traffic applications.

---

Characteristics

Structure: Oscillated

Polymer: High-density polyethylene

Material: Recycled plastics

Ecology influence: Environmentally neutral

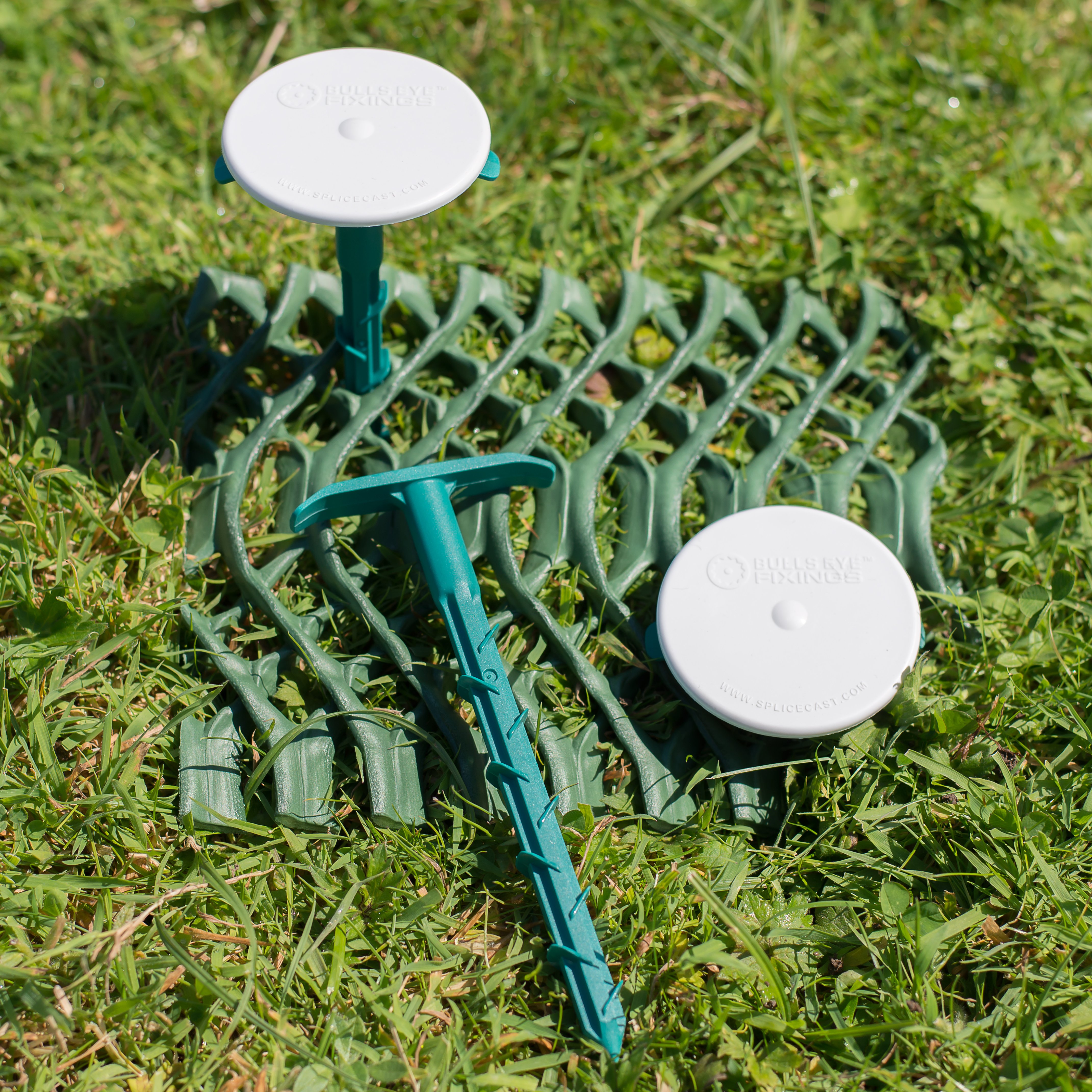

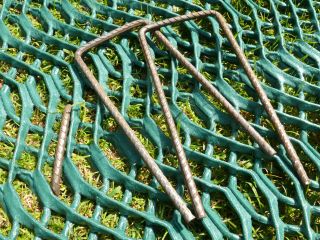

Securing method: Steel pins, fixing U-Pins

Colour: Green

Slip risk/PTV value: 40 (Low)

UV-stabilised: Yes

Production & quality control: GB/T 9001-2008 / ISO 9001-2008

---

GR11 Grass Reinforcement Mesh

Options: 1m x 10m, 2m x 10m, 2m x 20m, 2.5m x 5m
Thickness: 11mm
Weight: 1.2kg per m²
Tensile strength (kN/m)(MD/TD): 13.5 kN/m²
Yield point elongation (%): 22%
Roll weight: 12kg, 24kg, 48kg, 15kg

---

GR14 Grass Reinforcement Mesh

Options: 1m x 10m, 2m x 10m, 2m x 20m, 2.5m x 15m
Thickness: 14mm
Weight: 2kg per m²
Tensile strength (kN/m)(MD/TD): 19 kN/m²
Yield point elongation (%): 21%
Roll weight: 20kg, 40kg, 80kg, 75kg

---

All data figures are nominal and are given in good faith. Suregreen Limited reserve the right to amend any data without prior notice. Product variances are provided as a guide and normal production and product characteristics are within these parameters.
